Specifications:

• Origin: CN(Origin)
• Protection grade: IP65

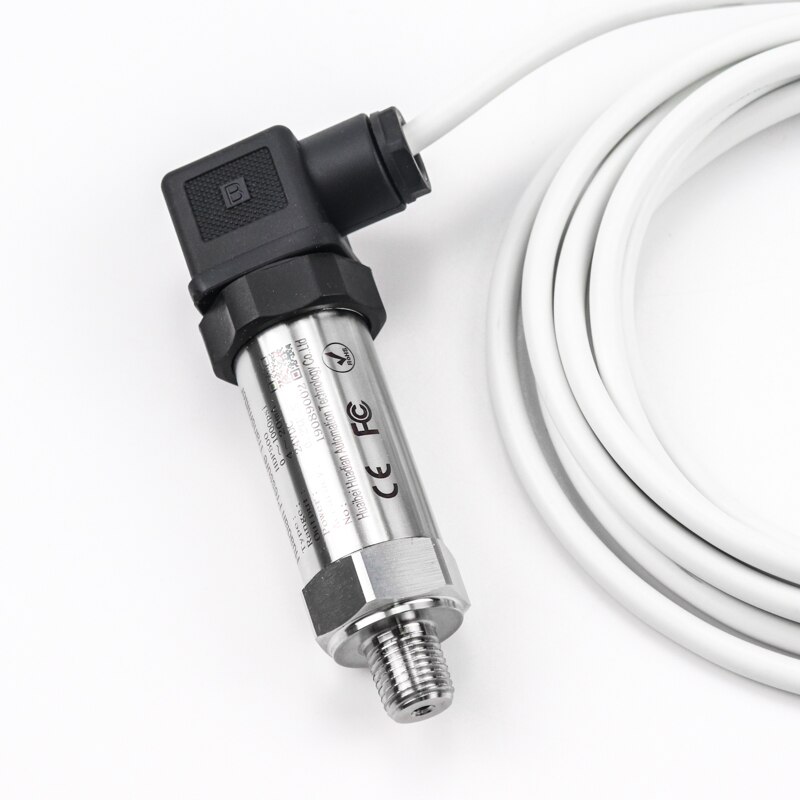

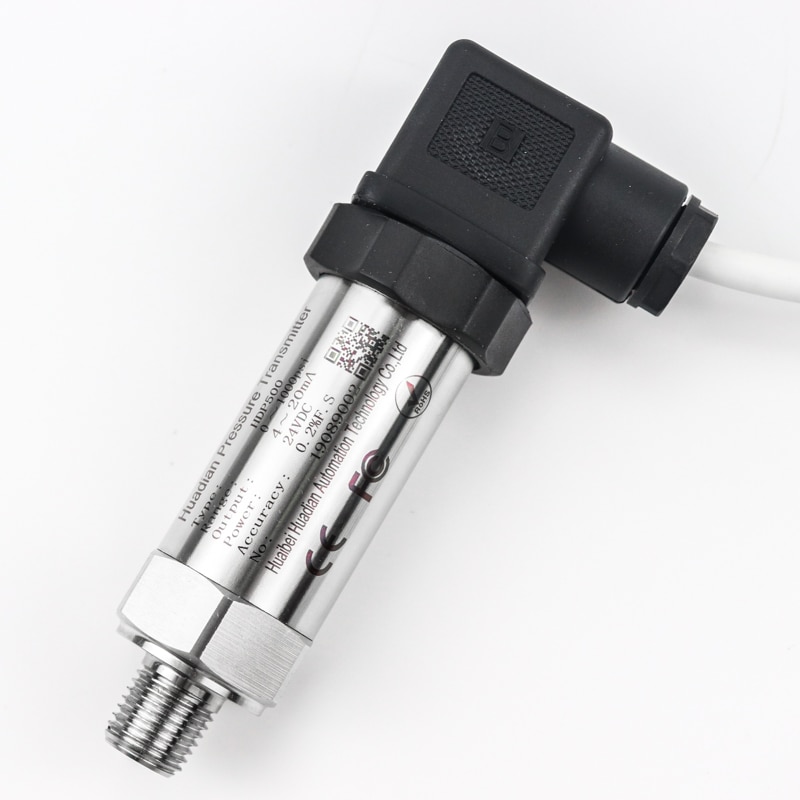

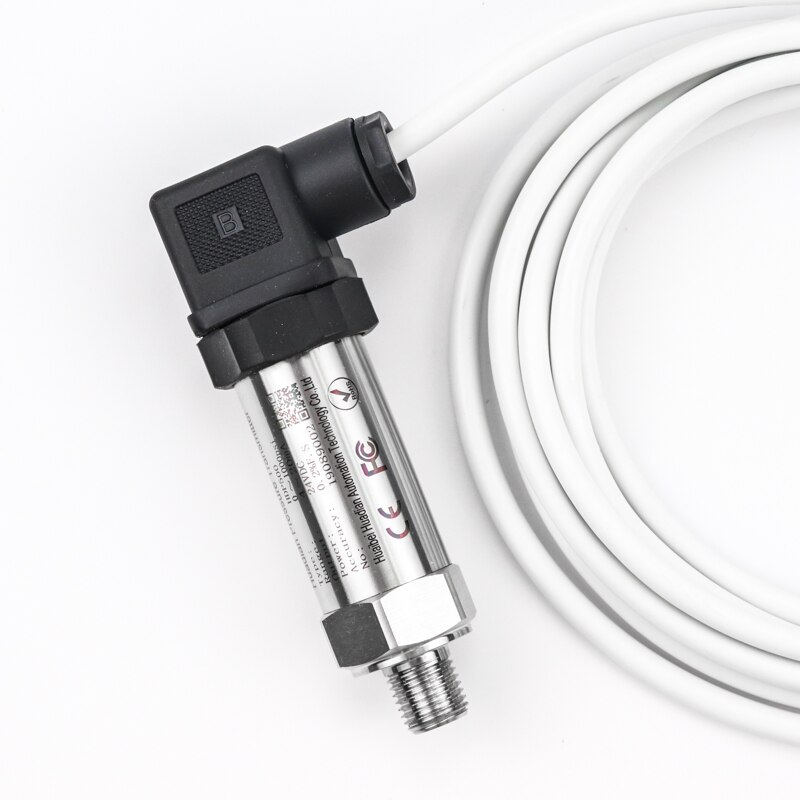

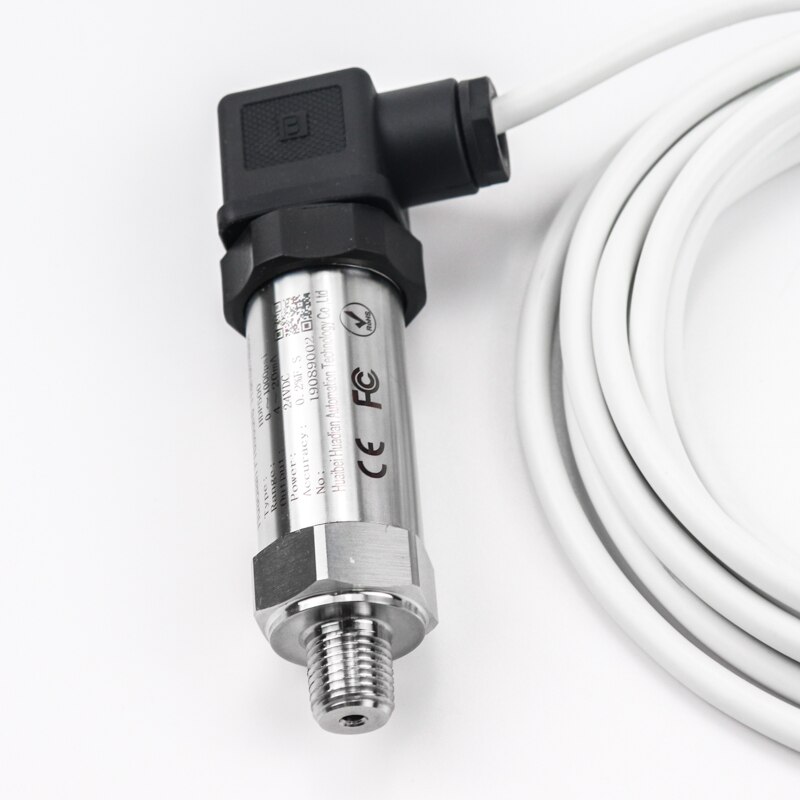

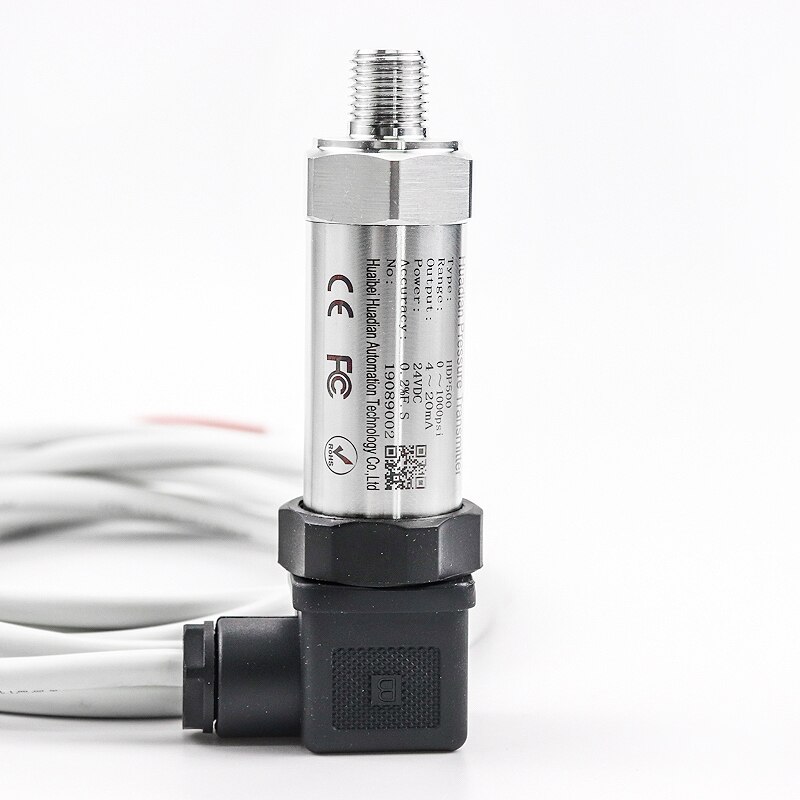

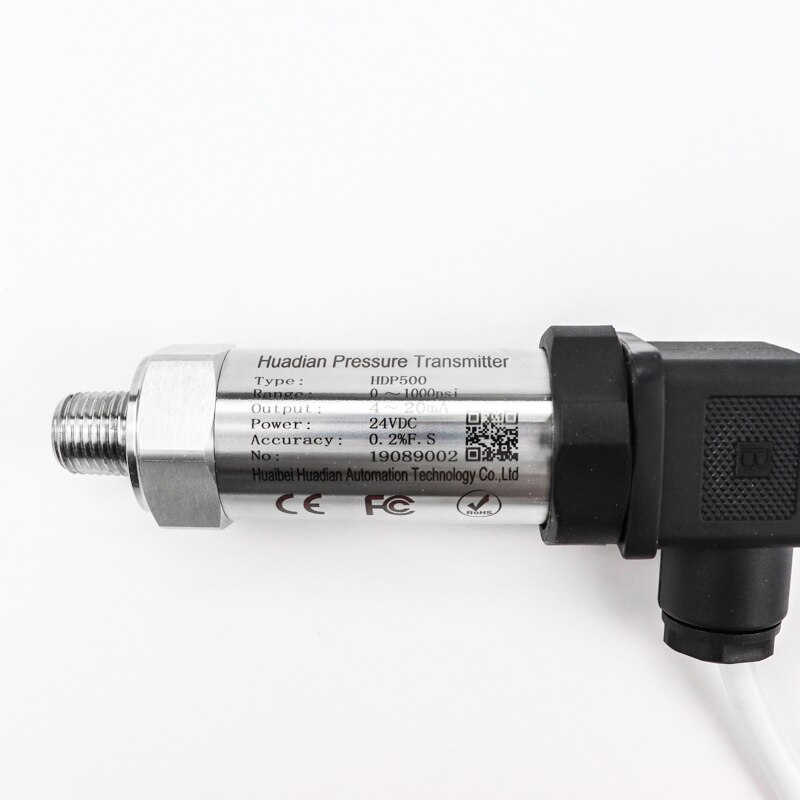

• Product name: hydraulic oil pressure sensor
• Process connection: M20*1.5(thread),1/2 NPT,G 1/2,Others
• Pressure type: Gauge pressure,Absolute pressure
• Power Supply: 12-36VDC
• Overload pressure: 200%F.S
• Output Signal: 4~20mA,1~5V,0~10V,RS485
• Model Number: HDP501 Analog pressure sensor
• Model Number: HDP-500
• Medium Temperature: -40~80Deg.C
• Measuring Media: Gaseous,Liquids,Water, oil,fuel etc
• Max Measuring Range: 100 - 199 Bar
• Linearity: 0.03%
• Housing material: SS304,SS316
• Full-load consumption: 2w
• Electrical connection: Hirschmann, Direct lead , Aeronautical plug etc
• Display: No display , LCD,LED (optional)
• Certificates: CE, ISO , FCC, SGS etc
• Cable length: Standard 2 meter
• Accuracy: 0.25%F.S, 0.5%F.S
• Certification: RoHS
• Certification: CE
